Conformational clustering of a protein
In this tutorial, we will perform and analyze conformational clustering of protein using coordinate-based PCA. This is the simplest for of the clustering that can be performed.
Instructions
Tutorial files: The tutorial files can be downloaded from here.
Extract the files:
tar -zxvf protein-pca.tar.gzGo to directory:
cd protein-pcaCopy the Jupyter Notebook: This notebook is available in the GitHub repo. Download and copy it from the github.
Required Tools
GROMACS
gmx_clusterByFeatures
Steps
PCA of the protein
Calculation of projections on first five PCs
Calculation of Cluster-Metrics
Final Clustering
Analysis
1. PCA of the protein
We will use GROMACS tools gmx covar to perform the PCA. Here, we will perform PCA of protein’s C-Alpha atoms coordinates.
This step will calculate covariance matrix, eigenvectors and eigenvalues. By default, the eigenvectors are written in eigenvec.trr while eigenvalues are written in eigenval.xvg files.
Note: Both index groups here is “C-alpha” because it is used both for covariance calculation and structure superimposition on the reference conformation.
[1]:
%%bash
echo 3 3 | gmx covar -s inputs/onlyProtein.tpr -f inputs/onlyProtein.xtc -n inputs/onlyProtein.ndx -mwa
:-) GROMACS - gmx covar, 2025.2 (-:
Executable: /opt/gromacs-2025/bin/gmx
Data prefix: /opt/gromacs-2025
Working dir: /home/raj/workspace/gmx_clusterByFeatrues/tutorials/protein-pca
Command line:
gmx covar -s inputs/onlyProtein.tpr -f inputs/onlyProtein.xtc -n inputs/onlyProtein.ndx -mwa
Reading file inputs/onlyProtein.tpr, VERSION 5.1.2 (single precision)
Reading file inputs/onlyProtein.tpr, VERSION 5.1.2 (single precision)
Group 0 ( System) has 8327 elements
Group 1 ( Protein) has 8327 elements
Group 2 ( Protein-H) has 4217 elements
Group 3 ( C-alpha) has 542 elements
Group 4 ( Backbone) has 1626 elements
Group 5 ( MainChain) has 2169 elements
Group 6 ( MainChain+Cb) has 2660 elements
Group 7 ( MainChain+H) has 2668 elements
Group 8 ( SideChain) has 5659 elements
Group 9 ( SideChain-H) has 2048 elements
Group 10 (r_5-535_&_MainChain) has 2124 elements
Group 11 (r_5-535_&_MainChain_&_!r_72-85_&_!r_257-268_&_!r_338-352_&_!r_435-444) has 1920 elements
Group 12 ( r_79_&_CA) has 1 elements
Group 13 ( r_341_&_CA) has 1 elements
Group 14 ( r_293_&_CA) has 1 elements
Group 15 (r_10-535_&_MainChain) has 2104 elements
Group 16 ( r_203) has 11 elements
Group 17 ( r_447) has 18 elements
Group 18 ( oxyanion_hole) has 52 elements
Group 19 ( acyl_pocket) has 84 elements
Group 20 ( choline_site) has 45 elements
Group 21 (peripheral_site) has 106 elements
Select a group: Group 0 ( System) has 8327 elements
Group 1 ( Protein) has 8327 elements
Group 2 ( Protein-H) has 4217 elements
Group 3 ( C-alpha) has 542 elements
Group 4 ( Backbone) has 1626 elements
Group 5 ( MainChain) has 2169 elements
Group 6 ( MainChain+Cb) has 2660 elements
Group 7 ( MainChain+H) has 2668 elements
Group 8 ( SideChain) has 5659 elements
Group 9 ( SideChain-H) has 2048 elements
Group 10 (r_5-535_&_MainChain) has 2124 elements
Group 11 (r_5-535_&_MainChain_&_!r_72-85_&_!r_257-268_&_!r_338-352_&_!r_435-444) has 1920 elements
Group 12 ( r_79_&_CA) has 1 elements
Group 13 ( r_341_&_CA) has 1 elements
Group 14 ( r_293_&_CA) has 1 elements
Group 15 (r_10-535_&_MainChain) has 2104 elements
Group 16 ( r_203) has 11 elements
Group 17 ( r_447) has 18 elements
Group 18 ( oxyanion_hole) has 52 elements
Group 19 ( acyl_pocket) has 84 elements
Group 20 ( choline_site) has 45 elements
Group 21 (peripheral_site) has 106 elements
Select a group: Calculating the average structure ...
Reading frame 22000 time 2200000.000
Back Off! I just backed up average.pdb to ./#average.pdb.1#
Constructing covariance matrix (1626x1626) ...
Reading frame 22000 time 2200000.000
Read 22501 frames
Trace of the covariance matrix: 146.699 (u nm^2)
Diagonalizing ...
Sum of the eigenvalues: 146.699 (u nm^2)
Writing eigenvalues to eigenval.xvg
Back Off! I just backed up eigenval.xvg to ./#eigenval.xvg.1#
Writing reference, average structure & eigenvectors 1--1626 to eigenvec.trr
Back Off! I just backed up eigenvec.trr to ./#eigenvec.trr.1#
Back Off! I just backed up covar.log to ./#covar.log.1#
Wrote the log to covar.log
GROMACS reminds you: "If you don't know what you're doing, use a (M)BAR-based method" (Erik Lindahl)
Choose a group for the least squares fit
Selected 3: 'C-alpha'
Choose a group for the covariance analysis
Selected 3: 'C-alpha'
2. Calculate projections on first five PCs
We will use eigenvectors eigenvec.trr as input files to GROMACS tool gmx anaeig to calculate projection of first 5 eigenvectors on trajectory. These projections will be written into proj.xvg file by default.
[2]:
%%bash
echo 3 3 | gmx anaeig -s inputs/onlyProtein.tpr -f inputs/onlyProtein.xtc -n inputs/onlyProtein.ndx -proj -first 1 -last 10
:-) GROMACS - gmx anaeig, 2025.2 (-:
Executable: /opt/gromacs-2025/bin/gmx
Data prefix: /opt/gromacs-2025
Working dir: /home/raj/workspace/gmx_clusterByFeatrues/tutorials/protein-pca
Command line:
gmx anaeig -s inputs/onlyProtein.tpr -f inputs/onlyProtein.xtc -n inputs/onlyProtein.ndx -proj -first 1 -last 10
trr version: GMX_trn_file (single precision)
Read non mass weighted reference structure with 542 atoms from eigenvec.trr
Read mass weighted average/minimum structure with 542 atoms from eigenvec.trr
Read 1626 eigenvectors (for 542 atoms)
Reading file inputs/onlyProtein.tpr, VERSION 5.1.2 (single precision)
Reading file inputs/onlyProtein.tpr, VERSION 5.1.2 (single precision)
Group 0 ( System) has 8327 elements
Group 1 ( Protein) has 8327 elements
Group 2 ( Protein-H) has 4217 elements
Group 3 ( C-alpha) has 542 elements
Group 4 ( Backbone) has 1626 elements
Group 5 ( MainChain) has 2169 elements
Group 6 ( MainChain+Cb) has 2660 elements
Group 7 ( MainChain+H) has 2668 elements
Group 8 ( SideChain) has 5659 elements
Group 9 ( SideChain-H) has 2048 elements
Group 10 (r_5-535_&_MainChain) has 2124 elements
Group 11 (r_5-535_&_MainChain_&_!r_72-85_&_!r_257-268_&_!r_338-352_&_!r_435-444) has 1920 elements
Group 12 ( r_79_&_CA) has 1 elements
Group 13 ( r_341_&_CA) has 1 elements
Group 14 ( r_293_&_CA) has 1 elements
Group 15 (r_10-535_&_MainChain) has 2104 elements
Group 16 ( r_203) has 11 elements
Group 17 ( r_447) has 18 elements
Group 18 ( oxyanion_hole) has 52 elements
Group 19 ( acyl_pocket) has 84 elements
Group 20 ( choline_site) has 45 elements
Group 21 (peripheral_site) has 106 elements
Select a group: Group 0 ( System) has 8327 elements
Group 1 ( Protein) has 8327 elements
Group 2 ( Protein-H) has 4217 elements
Group 3 ( C-alpha) has 542 elements
Group 4 ( Backbone) has 1626 elements
Group 5 ( MainChain) has 2169 elements
Group 6 ( MainChain+Cb) has 2660 elements
Group 7 ( MainChain+H) has 2668 elements
Group 8 ( SideChain) has 5659 elements
Group 9 ( SideChain-H) has 2048 elements
Group 10 (r_5-535_&_MainChain) has 2124 elements
Group 11 (r_5-535_&_MainChain_&_!r_72-85_&_!r_257-268_&_!r_338-352_&_!r_435-444) has 1920 elements
Group 12 ( r_79_&_CA) has 1 elements
Group 13 ( r_341_&_CA) has 1 elements
Group 14 ( r_293_&_CA) has 1 elements
Group 15 (r_10-535_&_MainChain) has 2104 elements
Group 16 ( r_203) has 11 elements
Group 17 ( r_447) has 18 elements
Group 18 ( oxyanion_hole) has 52 elements
Group 19 ( acyl_pocket) has 84 elements
Group 20 ( choline_site) has 45 elements
Group 21 (peripheral_site) has 106 elements
Select a group: 10 eigenvectors selected for output: 1 2 3 4 5 6 7 8 9 10
Reading frame 22000 time 2200000.000
Back Off! I just backed up proj.xvg to ./#proj.xvg.1#
GROMACS reminds you: "Everybody is Smashing Things Down" (Offspring)
Select the index group that was used for the least squares fit in gmx covar
Selected 3: 'C-alpha'
Select an index group of 542 elements that corresponds to the eigenvectors
Selected 3: 'C-alpha'
3. Calculation of Cluster-Metrics
Before performing final clutering, we would first generate cluster-mterics that can be used to make a decision on the number of clusters. One of the drawback of K-Means clustering is that the number of clusters should be known beforehand. Although, gmx_clusterByFeatures implements several cluster metrics and also automatated way to decide
number of clusters, here, we first calculate cluster-metrics and final clustering can be performed later.
Following command will perform the clustering of conformations using first 5 PCs projection. Explanation of options are as follows:
-method kmeans: Use K-Means clustering algorithm-ncluster 10: K-Means clustering will be performed for 1 upto 10 clusters times each time. Finally, based on-ssrchangeoption, final number of clusters will be automatically selected.-cmetric ssr-sst: Use Elbow method to decide final number of clusters.-nfeature 5: Take 5 feature fromfeat proj.xvginput file. Here it is projection of first 5 eigenvectors on the trajectory.-sort features: Sort the output clustered trajectory based on the distance in feature space from its central structure.-fit2central: Fit/Superimpose the conformation on cluster’s central structure in output clustered trajectory.-ssrchange 2: Threshold (percentage) of change in SSR/SST ratio in Elbow method to automatically decide the number of clusters.-g clusters_scan.log: Log file containing clustering information and cluster-mterics.-plot pca_cluster.png: Plot the feature-space (here, it is first 5 PCs from PCA) coloured by the clusters.
index group order
First index group - Output group of atoms in the central structures and clustered trajectories
Second index group - Group of atoms to calculate RMSD between central conformations of clusters as RMSD matrix, which is dumped in the log file with
-goption. Here, it is Ligand without hydrogen atoms.Third index group - Used for Superimposition by least-square fitting. ONLY used in separate clustered trajectories to superimpose conformations on the central structure.
This command could take a long time to execute!
This command could take a long time to execute because it is writing output trajectory file for each cluster sorted by distance in feature-space. Therefore, it needs to read input trajectory back-and-forth many time to extract the conformations in sorted manner. XTC format is fast for back-and-forth reading, and it still could take long time to dump the output trajectories.
Content of the output ``-g cluster.log`` file
It contains the command summary, and for each input cluster-numbers, number of frames in each clusters. At the end it dumps the Cluster Metrics Summary, which is important for deciding final number of clusters.
[3]:
%%bash
echo 0 3 3 | gmx_clusterByFeatures cluster -s inputs/onlyProtein.tpr -f inputs/onlyProtein.xtc -n inputs/onlyProtein.ndx \
-feat proj.xvg -method kmeans -nfeature 5 -cmetric ssr-sst -ssrchange 1 -ncluster 15 \
-g clusters_scan.log -plot pca_cluster.png
:-) GROMACS - gmx_clusterByFeatures cluster, 2025.0-dev-20250210-6949615-local (-:
Executable: gmx_clusterByFeatures cluster
Data prefix: /project/external/gmx_installed
Working dir: /home/raj/workspace/gmx_clusterByFeatrues/tutorials/protein-pca
Command line:
'gmx_clusterByFeatures cluster' -s inputs/onlyProtein.tpr -f inputs/onlyProtein.xtc -n inputs/onlyProtein.ndx -feat proj.xvg -method kmeans -nfeature 5 -cmetric ssr-sst -ssrchange 1 -ncluster 15 -g clusters_scan.log -plot pca_cluster.png
:-) gmx_clusterByFeatures cluster (-:
Author: Rajendra Kumar
Copyright (C) 2018-2019 Rajendra Kumar
gmx_clusterByFeatures is a free software: you can redistribute it and/or modify
it under the terms of the GNU General Public License as published by
the Free Software Foundation, either version 3 of the License, or
(at your option) any later version.
gmx_clusterByFeatures is distributed in the hope that it will be useful,
but WITHOUT ANY WARRANTY; without even the implied warranty of
MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
GNU General Public License for more details.
You should have received a copy of the GNU General Public License
along with gmx_clusterByFeatures. If not, see <http://www.gnu.org/licenses/>.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
"AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT
OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF
LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
Back Off! I just backed up clusters_scan.log to ./#clusters_scan.log.1#
Reading file inputs/onlyProtein.tpr, VERSION 5.1.2 (single precision)
Reading file inputs/onlyProtein.tpr, VERSION 5.1.2 (single precision)
Group 0 ( System) has 8327 elements
Group 1 ( Protein) has 8327 elements
Group 2 ( Protein-H) has 4217 elements
Group 3 ( C-alpha) has 542 elements
Group 4 ( Backbone) has 1626 elements
Group 5 ( MainChain) has 2169 elements
Group 6 ( MainChain+Cb) has 2660 elements
Group 7 ( MainChain+H) has 2668 elements
Group 8 ( SideChain) has 5659 elements
Group 9 ( SideChain-H) has 2048 elements
Group 10 (r_5-535_&_MainChain) has 2124 elements
Group 11 (r_5-535_&_MainChain_&_!r_72-85_&_!r_257-268_&_!r_338-352_&_!r_435-444) has 1920 elements
Group 12 ( r_79_&_CA) has 1 elements
Group 13 ( r_341_&_CA) has 1 elements
Group 14 ( r_293_&_CA) has 1 elements
Group 15 (r_10-535_&_MainChain) has 2104 elements
Group 16 ( r_203) has 11 elements
Group 17 ( r_447) has 18 elements
Group 18 ( oxyanion_hole) has 52 elements
Group 19 ( acyl_pocket) has 84 elements
Group 20 ( choline_site) has 45 elements
Group 21 (peripheral_site) has 106 elements
Select a group: Group 0 ( System) has 8327 elements
Group 1 ( Protein) has 8327 elements
Group 2 ( Protein-H) has 4217 elements
Group 3 ( C-alpha) has 542 elements
Group 4 ( Backbone) has 1626 elements
Group 5 ( MainChain) has 2169 elements
Group 6 ( MainChain+Cb) has 2660 elements
Group 7 ( MainChain+H) has 2668 elements
Group 8 ( SideChain) has 5659 elements
Group 9 ( SideChain-H) has 2048 elements
Group 10 (r_5-535_&_MainChain) has 2124 elements
Group 11 (r_5-535_&_MainChain_&_!r_72-85_&_!r_257-268_&_!r_338-352_&_!r_435-444) has 1920 elements
Group 12 ( r_79_&_CA) has 1 elements
Group 13 ( r_341_&_CA) has 1 elements
Group 14 ( r_293_&_CA) has 1 elements
Group 15 (r_10-535_&_MainChain) has 2104 elements
Group 16 ( r_203) has 11 elements
Group 17 ( r_447) has 18 elements
Group 18 ( oxyanion_hole) has 52 elements
Group 19 ( acyl_pocket) has 84 elements
Group 20 ( choline_site) has 45 elements
Group 21 (peripheral_site) has 106 elements
Select a group: Group 0 ( System) has 8327 elements
Group 1 ( Protein) has 8327 elements
Group 2 ( Protein-H) has 4217 elements
Group 3 ( C-alpha) has 542 elements
Group 4 ( Backbone) has 1626 elements
Group 5 ( MainChain) has 2169 elements
Group 6 ( MainChain+Cb) has 2660 elements
Group 7 ( MainChain+H) has 2668 elements
Group 8 ( SideChain) has 5659 elements
Group 9 ( SideChain-H) has 2048 elements
Group 10 (r_5-535_&_MainChain) has 2124 elements
Group 11 (r_5-535_&_MainChain_&_!r_72-85_&_!r_257-268_&_!r_338-352_&_!r_435-444) has 1920 elements
Group 12 ( r_79_&_CA) has 1 elements
Group 13 ( r_341_&_CA) has 1 elements
Group 14 ( r_293_&_CA) has 1 elements
Group 15 (r_10-535_&_MainChain) has 2104 elements
Group 16 ( r_203) has 11 elements
Group 17 ( r_447) has 18 elements
Group 18 ( oxyanion_hole) has 52 elements
Group 19 ( acyl_pocket) has 84 elements
Group 20 ( choline_site) has 45 elements
Group 21 (peripheral_site) has 106 elements
Reading frame 4 time 400.000
=======================
Cluster Log output
=======================
Command:
=======================
'gmx_clusterByFeatures cluster' -s inputs/onlyProtein.tpr -f inputs/onlyProtein.xtc -n inputs/onlyProtein.ndx -feat proj.xvg -method kmeans -nfeature 5 -cmetric ssr-sst -ssrchange 1 -ncluster 15 -g clusters_scan.log -plot pca_cluster.png
=======================
Choose a group for the output:
Selected 0: 'System'
Choose a group for clustering/RMSD calculation:
Selected 3: 'C-alpha'
Choose a group for fitting or superposition:
Selected 3: 'C-alpha'
Input Trajectory dt = 100 ps
###########################################
########## NUMBER OF CLUSTERS : 1 ########
###########################################
===========================
Cluster-ID TotalFrames
1 22501
===========================
###########################################
########## NUMBER OF CLUSTERS : 2 ########
###########################################
===========================
Cluster-ID TotalFrames
1 13636
2 8865
===========================
###########################################
########## NUMBER OF CLUSTERS : 3 ########
###########################################
===========================
Cluster-ID TotalFrames
1 13593
2 4502
3 4406
===========================
###########################################
########## NUMBER OF CLUSTERS : 4 ########
###########################################
===========================
Cluster-ID TotalFrames
1 9149
2 4502
3 4457
4 4393
===========================
###########################################
########## NUMBER OF CLUSTERS : 5 ########
###########################################
===========================
Cluster-ID TotalFrames
1 5376
2 4502
3 4445
4 4261
5 3917
===========================
###########################################
########## NUMBER OF CLUSTERS : 6 ########
###########################################
===========================
Cluster-ID TotalFrames
1 5376
2 4445
3 4261
4 3918
5 2532
6 1969
===========================
###########################################
########## NUMBER OF CLUSTERS : 7 ########
###########################################
===========================
Cluster-ID TotalFrames
1 5383
2 4439
3 3723
4 2872
5 2531
6 1970
7 1583
===========================
###########################################
########## NUMBER OF CLUSTERS : 8 ########
###########################################
===========================
Cluster-ID TotalFrames
1 4455
2 3723
3 2875
4 2723
5 2711
6 2537
7 1964
8 1513
===========================
###########################################
########## NUMBER OF CLUSTERS : 9 ########
###########################################
===========================
Cluster-ID TotalFrames
1 3723
2 2879
3 2711
4 2698
5 2532
6 2293
7 2196
8 1969
9 1500
===========================
###########################################
########## NUMBER OF CLUSTERS : 10 ########
###########################################
===========================
Cluster-ID TotalFrames
1 2882
2 2831
3 2531
4 2386
5 2352
6 2293
7 2196
8 1970
9 1565
10 1495
===========================
###########################################
########## NUMBER OF CLUSTERS : 11 ########
###########################################
===========================
Cluster-ID TotalFrames
1 2876
2 2834
3 2531
4 2377
5 2350
6 2330
7 1970
8 1565
9 1497
10 1131
11 1040
===========================
###########################################
########## NUMBER OF CLUSTERS : 12 ########
###########################################
===========================
Cluster-ID TotalFrames
1 2869
2 2330
3 2293
4 2193
5 2166
6 2026
7 2018
8 1705
9 1465
10 1265
11 1087
12 1084
===========================
###########################################
########## NUMBER OF CLUSTERS : 13 ########
###########################################
===========================
Cluster-ID TotalFrames
1 2868
2 2330
3 2321
4 2157
5 2021
6 2015
7 1708
8 1465
9 1266
10 1131
11 1096
12 1084
13 1039
===========================
###########################################
########## NUMBER OF CLUSTERS : 14 ########
###########################################
===========================
Cluster-ID TotalFrames
1 2881
2 2713
3 2330
4 2159
5 2009
6 1478
7 1275
8 1233
9 1182
10 1131
11 1094
12 1039
13 1027
14 950
===========================
###########################################
########## NUMBER OF CLUSTERS : 15 ########
###########################################
===========================
Cluster-ID TotalFrames
1 2322
2 2181
3 2159
4 1995
5 1693
6 1635
7 1419
8 1315
9 1300
10 1219
11 1095
12 1084
13 1058
14 1020
15 1006
===========================
===========================================================================================================
Cluster Metrics Summary
-----------------------------------------------------------------------------------------------------------
Clusters SSR/SST D(SSR/SST) (Psuedo)F-stat. Silhouette-score Davies-bouldin-score
2 32.09 32.087 10630.270 0.336 1.407
3 52.86 20.774 12614.548 0.400 0.942
4 64.17 11.306 13428.643 0.400 1.057
5 73.16 8.991 15327.938 0.434 0.909
6 76.43 3.272 14588.116 0.419 0.979
7 78.99 2.562 14095.769 0.416 0.967
8 80.97 1.983 13675.239 0.388 1.031
9 83.40 2.425 14123.352 0.387 1.034
10 84.80 1.405 13945.549 0.385 1.011
11 85.74 0.935 13520.893 0.395 0.958
12 86.38 0.639 12964.022 0.358 1.124
13 87.31 0.935 12897.040 0.368 1.070
14 88.02 0.706 12708.343 0.373 1.030
15 88.06 0.042 11846.923 0.319 1.167
===========================================================================================================
#####################################
Final number of cluster selected: 10
#####################################
Calculating central structure for cluster-10 ...
Reading frame 9 time 2122800.000 <string>:127: MatplotlibDeprecationWarning: The non_interactive_bk attribute was deprecated in Matplotlib 3.9 and will be removed in 3.11. Use ``matplotlib.backends.backend_registry.list_builtin(matplotlib.backends.BackendFilter.NON_INTERACTIVE)`` instead.
Back Off! I just backed up clid.xvg to ./#clid.xvg.1#
GROMACS reminds you: "Why is it that programmers always confuse Halloween with Christmas? Because 31 OCT = 25 DEC." (Anonymous)
===========================================
Cluster-ID Central Frame Total Frames
1 18947 2882
2 17741 2831
3 2272 2531
4 5953 2386
5 4983 2352
6 12308 2293
7 10059 2196
8 1151 1970
9 15181 1565
10 21228 1495
===========================================
Extracting coordinates of the central structure...
Calculating RMSD between central structures...
=====================================
Central structurs - RMSD matrix
=====================================
c1 c2 c3 c4 c5 c6 c7 c8 c9 c10
0.000 0.204 0.245 0.177 0.178 0.215 0.199 0.241 0.190 0.170
0.204 0.000 0.224 0.197 0.193 0.231 0.214 0.250 0.185 0.181
0.245 0.224 0.000 0.248 0.220 0.222 0.208 0.185 0.255 0.222
0.177 0.197 0.248 0.000 0.165 0.183 0.184 0.225 0.184 0.207
0.178 0.193 0.220 0.165 0.000 0.210 0.182 0.244 0.194 0.187
0.215 0.231 0.222 0.183 0.210 0.000 0.152 0.223 0.229 0.228
0.199 0.214 0.208 0.184 0.182 0.152 0.000 0.229 0.216 0.197
0.241 0.250 0.185 0.225 0.244 0.223 0.229 0.000 0.216 0.229
0.190 0.185 0.255 0.184 0.194 0.229 0.216 0.216 0.000 0.194
0.170 0.181 0.222 0.207 0.187 0.228 0.197 0.229 0.194 0.000
=====================================
4. Final Clustering
As can be seen in the above Cluster Metrics table best Silhouette-score is obtained for 5 clusters, however, best Davies-Bouldin score is obtained for 11 clusters. Also note that for 7 clusters Silhouette and Davies-Bouldin Score is also good. However, here we are going for 11 clusters as Davies-Bouldin score is low and Silhouette score is also not much differ from 7 clusters’ score.
[4]:
%%bash
# create a new folder to contain clustered trajectory and pdb files
mkdir clustered-trajs
echo 0 3 3 | gmx_clusterByFeatures cluster -s inputs/onlyProtein.tpr -f inputs/onlyProtein.xtc -n inputs/onlyProtein.ndx \
-feat proj.xvg -method kmeans -nfeature 5 -cmetric prior -ncluster 11 \
-g cluster_c11.log -plot pca_cluster_c11.png \
-fit2central -sort rmsd -cpdb clustered-trajs/central.pdb \
-fout clustered-trajs/cluster.xtc
:-) GROMACS - gmx_clusterByFeatures cluster, 2025.0-dev-20250210-6949615-local (-:
Executable: gmx_clusterByFeatures cluster
Data prefix: /project/external/gmx_installed
Working dir: /home/raj/workspace/gmx_clusterByFeatrues/tutorials/protein-pca
Command line:
'gmx_clusterByFeatures cluster' -s inputs/onlyProtein.tpr -f inputs/onlyProtein.xtc -n inputs/onlyProtein.ndx -feat proj.xvg -method kmeans -nfeature 5 -cmetric prior -ncluster 11 -g cluster_c11.log -plot pca_cluster_c11.png -fit2central -sort rmsd -cpdb clustered-trajs/central.pdb -fout clustered-trajs/cluster.xtc
:-) gmx_clusterByFeatures cluster (-:
Author: Rajendra Kumar
Copyright (C) 2018-2019 Rajendra Kumar
gmx_clusterByFeatures is a free software: you can redistribute it and/or modify
it under the terms of the GNU General Public License as published by
the Free Software Foundation, either version 3 of the License, or
(at your option) any later version.
gmx_clusterByFeatures is distributed in the hope that it will be useful,
but WITHOUT ANY WARRANTY; without even the implied warranty of
MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
GNU General Public License for more details.
You should have received a copy of the GNU General Public License
along with gmx_clusterByFeatures. If not, see <http://www.gnu.org/licenses/>.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
"AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT
OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF
LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
Back Off! I just backed up cluster_c11.log to ./#cluster_c11.log.1#
Reading file inputs/onlyProtein.tpr, VERSION 5.1.2 (single precision)
Reading file inputs/onlyProtein.tpr, VERSION 5.1.2 (single precision)
Group 0 ( System) has 8327 elements
Group 1 ( Protein) has 8327 elements
Group 2 ( Protein-H) has 4217 elements
Group 3 ( C-alpha) has 542 elements
Group 4 ( Backbone) has 1626 elements
Group 5 ( MainChain) has 2169 elements
Group 6 ( MainChain+Cb) has 2660 elements
Group 7 ( MainChain+H) has 2668 elements
Group 8 ( SideChain) has 5659 elements
Group 9 ( SideChain-H) has 2048 elements
Group 10 (r_5-535_&_MainChain) has 2124 elements
Group 11 (r_5-535_&_MainChain_&_!r_72-85_&_!r_257-268_&_!r_338-352_&_!r_435-444) has 1920 elements
Group 12 ( r_79_&_CA) has 1 elements
Group 13 ( r_341_&_CA) has 1 elements
Group 14 ( r_293_&_CA) has 1 elements
Group 15 (r_10-535_&_MainChain) has 2104 elements
Group 16 ( r_203) has 11 elements
Group 17 ( r_447) has 18 elements
Group 18 ( oxyanion_hole) has 52 elements
Group 19 ( acyl_pocket) has 84 elements
Group 20 ( choline_site) has 45 elements
Group 21 (peripheral_site) has 106 elements
Select a group: Group 0 ( System) has 8327 elements
Group 1 ( Protein) has 8327 elements
Group 2 ( Protein-H) has 4217 elements
Group 3 ( C-alpha) has 542 elements
Group 4 ( Backbone) has 1626 elements
Group 5 ( MainChain) has 2169 elements
Group 6 ( MainChain+Cb) has 2660 elements
Group 7 ( MainChain+H) has 2668 elements
Group 8 ( SideChain) has 5659 elements
Group 9 ( SideChain-H) has 2048 elements
Group 10 (r_5-535_&_MainChain) has 2124 elements
Group 11 (r_5-535_&_MainChain_&_!r_72-85_&_!r_257-268_&_!r_338-352_&_!r_435-444) has 1920 elements
Group 12 ( r_79_&_CA) has 1 elements
Group 13 ( r_341_&_CA) has 1 elements
Group 14 ( r_293_&_CA) has 1 elements
Group 15 (r_10-535_&_MainChain) has 2104 elements
Group 16 ( r_203) has 11 elements
Group 17 ( r_447) has 18 elements
Group 18 ( oxyanion_hole) has 52 elements
Group 19 ( acyl_pocket) has 84 elements
Group 20 ( choline_site) has 45 elements
Group 21 (peripheral_site) has 106 elements
Select a group: Group 0 ( System) has 8327 elements
Group 1 ( Protein) has 8327 elements
Group 2 ( Protein-H) has 4217 elements
Group 3 ( C-alpha) has 542 elements
Group 4 ( Backbone) has 1626 elements
Group 5 ( MainChain) has 2169 elements
Group 6 ( MainChain+Cb) has 2660 elements
Group 7 ( MainChain+H) has 2668 elements
Group 8 ( SideChain) has 5659 elements
Group 9 ( SideChain-H) has 2048 elements
Group 10 (r_5-535_&_MainChain) has 2124 elements
Group 11 (r_5-535_&_MainChain_&_!r_72-85_&_!r_257-268_&_!r_338-352_&_!r_435-444) has 1920 elements
Group 12 ( r_79_&_CA) has 1 elements
Group 13 ( r_341_&_CA) has 1 elements
Group 14 ( r_293_&_CA) has 1 elements
Group 15 (r_10-535_&_MainChain) has 2104 elements
Group 16 ( r_203) has 11 elements
Group 17 ( r_447) has 18 elements
Group 18 ( oxyanion_hole) has 52 elements
Group 19 ( acyl_pocket) has 84 elements
Group 20 ( choline_site) has 45 elements
Group 21 (peripheral_site) has 106 elements
Reading frame 4 time 400.000
=======================
Cluster Log output
=======================
Command:
=======================
'gmx_clusterByFeatures cluster' -s inputs/onlyProtein.tpr -f inputs/onlyProtein.xtc -n inputs/onlyProtein.ndx -feat proj.xvg -method kmeans -nfeature 5 -cmetric prior -ncluster 11 -g cluster_c11.log -plot pca_cluster_c11.png -fit2central -sort rmsd -cpdb clustered-trajs/central.pdb -fout clustered-trajs/cluster.xtc
=======================
Choose a group for the output:
Selected 0: 'System'
Choose a group for clustering/RMSD calculation:
Selected 3: 'C-alpha'
Choose a group for fitting or superposition:
Selected 3: 'C-alpha'
Input Trajectory dt = 100 ps
###########################################
########## NUMBER OF CLUSTERS : 11 ########
###########################################
===========================
Cluster-ID TotalFrames
1 2876
2 2834
3 2531
4 2377
5 2350
6 2330
7 1970
8 1565
9 1497
10 1131
11 1040
===========================
#####################################
Final number of cluster selected: 11
#####################################
Calculating central structure for cluster-11 ...
Reading frame 10 time 959300.000 <string>:127: MatplotlibDeprecationWarning: The non_interactive_bk attribute was deprecated in Matplotlib 3.9 and will be removed in 3.11. Use ``matplotlib.backends.backend_registry.list_builtin(matplotlib.backends.BackendFilter.NON_INTERACTIVE)`` instead.
Back Off! I just backed up clid.xvg to ./#clid.xvg.2#
Reading frame 22000 time 913000.000
GROMACS reminds you: "Sincerity is the key to success. Once you can fake that you've got it made." (Groucho Marx)
===========================================
Cluster-ID Central Frame Total Frames
1 18947 2876
2 17741 2834
3 2272 2531
4 5953 2377
5 4983 2350
6 12308 2330
7 1151 1970
8 15181 1565
9 21228 1497
10 10778 1131
11 9593 1040
===========================================
Extracting coordinates of the central structure...
Calculating RMSD between central structures...
=====================================
Central structurs - RMSD matrix
=====================================
c1 c2 c3 c4 c5 c6 c7 c8 c9 c10 c11
0.000 0.204 0.245 0.177 0.178 0.215 0.241 0.190 0.170 0.215 0.184
0.204 0.000 0.224 0.197 0.193 0.231 0.250 0.185 0.181 0.228 0.208
0.245 0.224 0.000 0.248 0.220 0.222 0.185 0.255 0.222 0.219 0.210
0.177 0.197 0.248 0.000 0.165 0.183 0.225 0.184 0.207 0.200 0.167
0.178 0.193 0.220 0.165 0.000 0.210 0.244 0.194 0.187 0.193 0.177
0.215 0.231 0.222 0.183 0.210 0.000 0.223 0.229 0.228 0.152 0.156
0.241 0.250 0.185 0.225 0.244 0.223 0.000 0.216 0.229 0.243 0.203
0.190 0.185 0.255 0.184 0.194 0.229 0.216 0.000 0.194 0.233 0.193
0.170 0.181 0.222 0.207 0.187 0.228 0.229 0.194 0.000 0.215 0.183
0.215 0.228 0.219 0.200 0.193 0.152 0.243 0.233 0.215 0.000 0.146
0.184 0.208 0.210 0.167 0.177 0.156 0.203 0.193 0.183 0.146 0.000
=====================================
Writing central structure to pdb-files...
Calculating RMSD from central structure for each cluster...
Sorting clustered frames according to RMSD/RMSDist...
Writing trajectory for each cluster...
5. Analysis
Now, we will perform following analysis on obtained clusters:
Comparison of RMSDs within and between the clusters: It will highlight the quality of clustering by measuring the difference in the clusters
Plotting PC vs PC cluster-wise. In fact, this is already plotted in the above obtained
pca_cluster.pngfile. However, we will focus on first three PCs to demonstrate the distribution of conformation in PC space.Cluster-ID with time: We will plot cluster-id as a function of time to analyze, how conformation is changing between clusters as a function of time.
At first, we will load Python modules and define some functions as follows:
[11]:
import re
import sys
import numpy as np
import matplotlib as mpl
import matplotlib.pyplot as plt
[6]:
def read_xvg(filename):
''' Read any XVG file and return the data as 2D array where data is row-wise with respect to time.
'''
fin = open(filename, 'r')
data = []
for line in fin:
line = line.rstrip().lstrip()
if not line:
continue
if re.search('^#|^@', line) is not None:
continue
temp = re.split('\s+', line)
data.append(list(map(float, temp)))
data = np.asarray(data)
return data.T
1a. Calculation of RMSDs within and between the clusters
At first, we need to calculate RMSDs of protein within and between the clusters using gmx rms command as follows.
Note: The protein structure is already superimposed when separated cluster-trajectory were written in the previous step, therefore, we are not performing fitting in RMSD calculations below,
Note: Remove %%capture --no-stdout and %%capture --no-stderr to populate all the output generated from gmx rms commands.
[7]:
%%capture --no-stdout
%%capture --no-stderr
%%script bash
# make directory for rmsd files
mkdir clustered-rmsd
for i in `seq 1 11`
do
for j in `seq 1 11`
do
echo 3 | gmx rms -f clustered-trajs/cluster_c${j}.xtc -s clustered-trajs/central_c${i}.pdb -o clustered-rmsd/c${i}_c${j} -nopbc -fit none
done
done
1b. Comparison of ligand RMSDs within and between the clusters

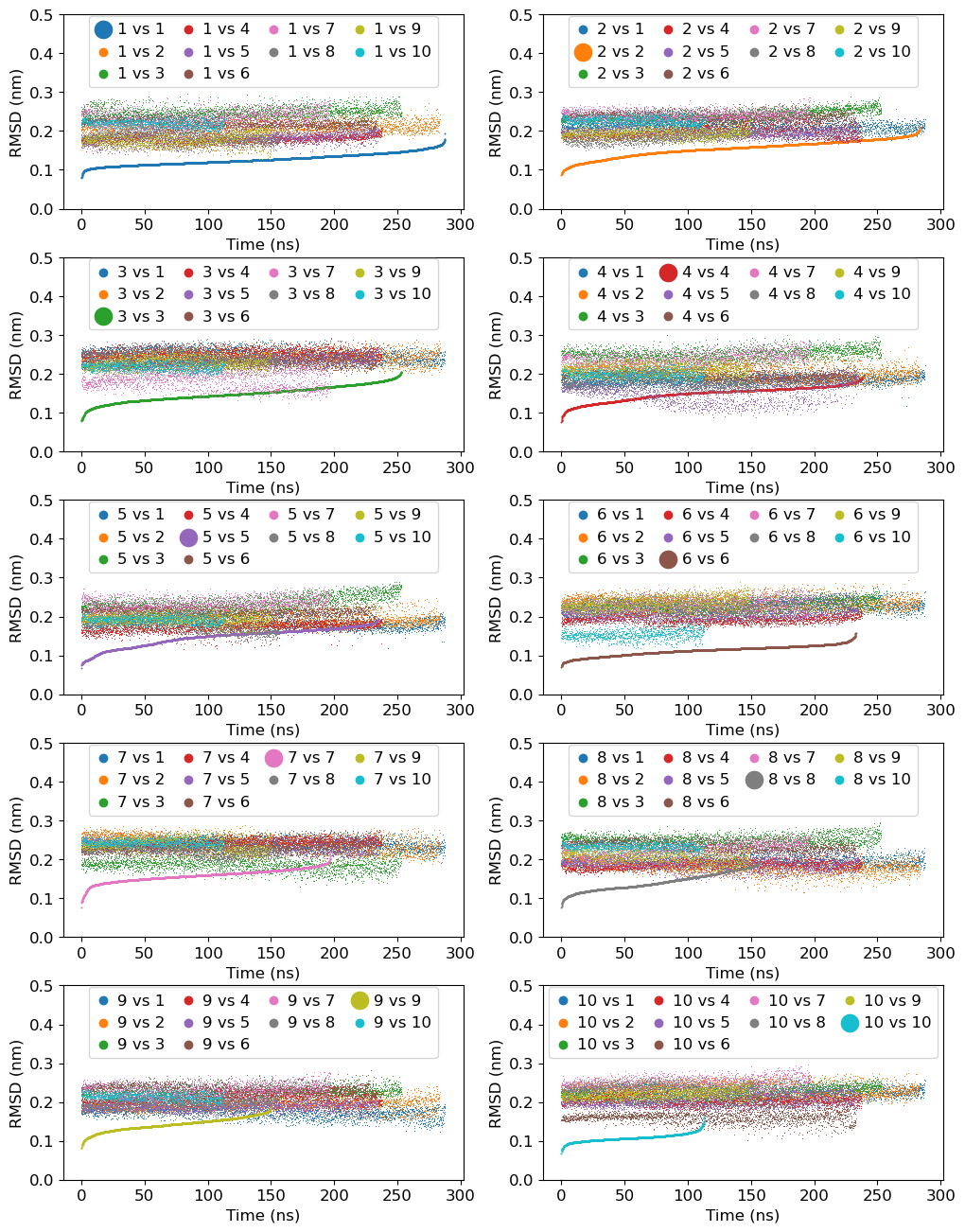

We will use Python to plot all the obtained RMSDs above.
[8]:
mpl.rcParams['font.size']=12
fig = plt.figure(figsize=(12,16))
fig.subplots_adjust(top=0.98, bottom=0.05, hspace=0.25)
for i in range(1,11):
ax = fig.add_subplot(6, 2, i)
for j in range(1,11):
filename = 'clustered-rmsd/c{0}_c{1}.xvg'.format(i, j)
label = "{0} vs {1}".format(i, j)
data = read_xvg(filename) # read file
if i==j:
ax.scatter(data[0]/1000, data[1], label=label, lw=0, s=2)
else:
ax.scatter(data[0]/1000, data[1], label=label, lw=0, s=0.5)
ax.set_ylim(0, 0.5)
ax.set_xlabel('Time (ns)')
ax.set_ylabel('RMSD (nm)')
plt.legend(loc='upper center', ncol=4, markerscale=10, borderaxespad=0.1, columnspacing=1, handlelength=1, handletextpad=0.4)
plt.savefig('rmsd-comparison.png', dpi=300)
plt.show()
3. Plotting PC vs PC cluster-wise
It will be done in two steps:
An input file will be prepared containing information about feature searial and their labels.
gmx_clusterByFeatures featuresplotwill be used to generate the plot.
[15]:
%%bash
# First step - preparation of input file
echo "1,2,PC-1,PC-2" > features-label.txt
echo "2,3,PC-2,PC-3" >> features-label.txt
echo "1,3,PC-1,PC-3" >> features-label.txt
echo "1,4,PC-1,PC-4" >> features-label.txt
cat features-label.txt
# Second step - plotting

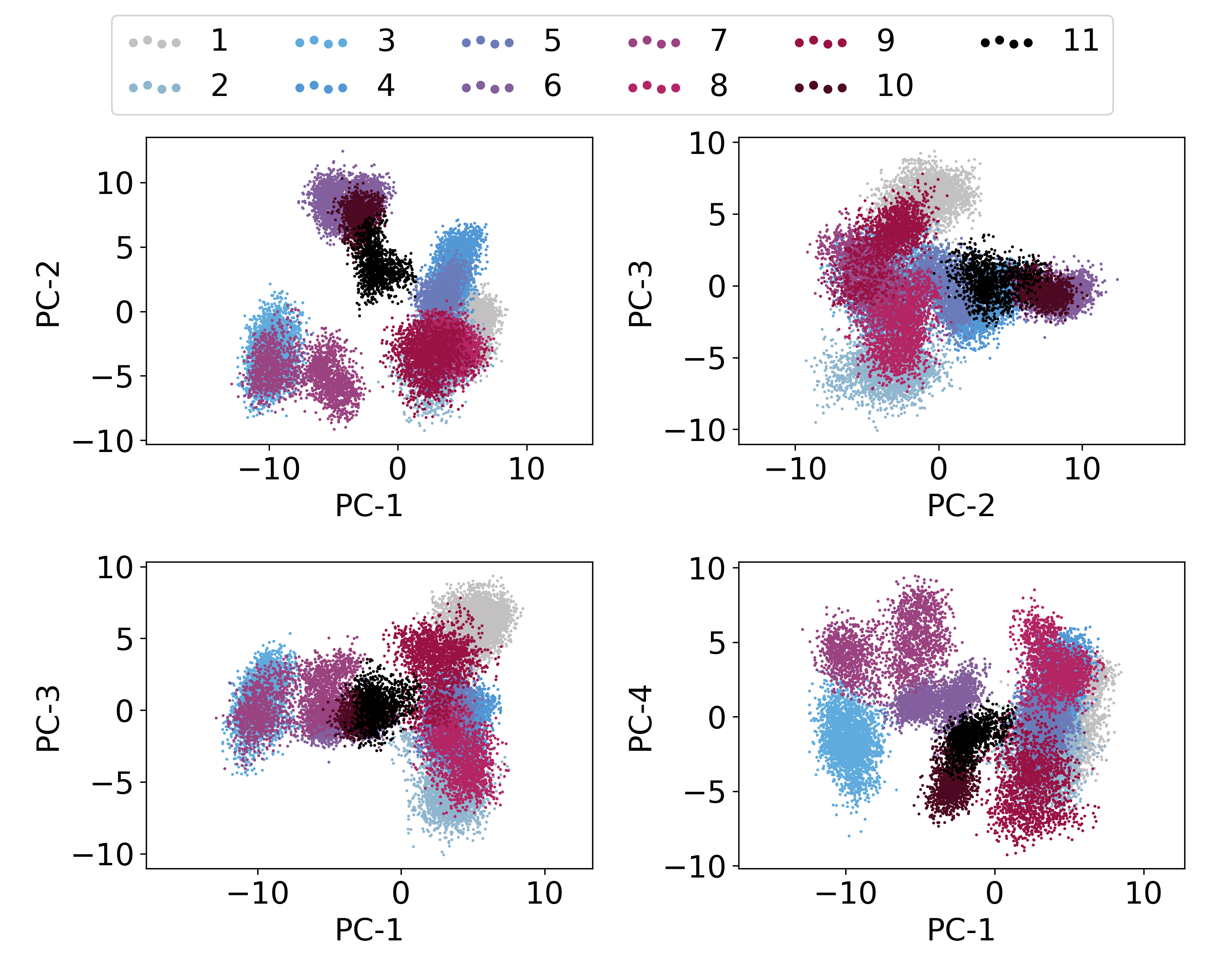

gmx_clusterByFeatures featuresplot -i features-label.txt -feat proj.xvg -clid clid.xvg -lcols 6 -o protein-pca-PCs-vs-PCs.png
1,2,PC-1,PC-2
2,3,PC-2,PC-3
1,3,PC-1,PC-3
1,4,PC-1,PC-4
3. Cluster-ID with time
We will use clid.xvg obtained from the cluster subcommand to plot both cluster-id and also highlight the occurance of the given cluster.
[16]:
mpl.rcParams['font.size']=12
data=read_xvg('clid.xvg')
fig = plt.figure(figsize=(8,6))
fig.subplots_adjust(right=0.85)
ax = fig.add_subplot(111)
ax.scatter(data[0]/1000, data[1], marker='x', color='k')
ax.set_yticks(range(1,12))
ax.set_ylabel('Cluster')
ax.set_xlabel('Time (ns)')
plt.savefig('clid.png', dpi=300)
plt.show()
