Conformational clustering of ligand with respect to receptor
In this tutorial, we will perform and analyze conformational clustering of ligand with reference to the receptor using coordinate-based PCA. Here, receptor is a G-Quadruplex DNA (G4DNA) and ligand is bound on top of the G4DNA. The oreintation of ligand is highly flexible and changes a lot during the simulations. Therefore, clustering will enable the grouping of ligand conformations with reference to the G4DNA conformation.
Final Result
Instructions
Tutorial files: The tutorial files can be downloaded from here.
Extract the files:
tar -zxvf ligand-pca.tar.gzGo to directory:
cd ligand-pcaCopy the Jupyter Notebook: This notebook is available in the GitHub repo. Download and copy it from the github.
Required Tools
GROMACS
gmx_clusterByFeatures
Steps
PCA of the ligand coordinates with reference to G4DNA
Calculate projections on first five PCs
Clustering using first five PCs as the features
Analysis
1. PCA of the ligand coordinates with reference to G4DNA
We will use GROMACS tools gmx covar to perform the PCA. Here, we will perform PCA of ligand coordinates while G4DNA will be superimposed on reference structure. Therefore, it will capture the motions and orientations of ligand with respect to the G4DNA.
This step will calculate covariance matrix, eigenvectors and eigenvalues. By default, the eigenvectors are written in eigenvec.trr while eigenvalues are written in eigenval.xvg files.
Note:
First index group is Ligand without hydrogen atoms. Covariance matrix, eigenvectors and eigenvalues will be calculated for this group.
Second index group is of G4DNA’s G-tetrads that are highly rigid during the simulations and serves here the reference for structure-fitting of the whole complex.
[1]:
%%bash
echo 13 14 | gmx covar -s inputs/input.tpr -f inputs/trajectory.xtc -n inputs/input.ndx
:-) GROMACS - gmx covar, 2025.2 (-:
Executable: /opt/gromacs-2025/bin/gmx
Data prefix: /opt/gromacs-2025
Working dir: /home/raj/workspace/gmx_clusterByFeatrues/tutorials/ligand-pca
Command line:
gmx covar -s inputs/input.tpr -f inputs/trajectory.xtc -n inputs/input.ndx
Reading file inputs/input.tpr, VERSION 2016.5 (single precision)
Reading file inputs/input.tpr, VERSION 2016.5 (single precision)
Group 0 ( System) has 864 elements
Group 1 ( DNA) has 783 elements
Group 2 ( LIG) has 30 elements
Group 3 ( K) has 37 elements
Group 4 ( CL) has 14 elements
Group 5 ( Other) has 30 elements
Group 6 ( LIG) has 30 elements
Group 7 ( K) has 37 elements
Group 8 ( CL) has 14 elements
Group 9 ( Ion) has 51 elements
Group 10 ( LIG) has 30 elements
Group 11 ( K) has 37 elements
Group 12 ( CL) has 14 elements
Group 13 (r_4-6_r_8-9_r_13-15_r_17-20_r_23-24_&_!O1P_O2P_P_O5'_C5'_C3'_C2'_C1'_O4'_O3'_H*) has 168 elements
Group 14 ( LIG_&_!H*) has 21 elements
Group 15 (r_4_r_8_r_13_r_17_&_!O1P_O2P_P_O5'_C5'_C4'_C3'_C2'_C1'_O4'_O3'_H*_r_4_r_8_r_13_r_17_&_H1_H21_H22) has 56 elements
Select a group: Group 0 ( System) has 864 elements
Group 1 ( DNA) has 783 elements
Group 2 ( LIG) has 30 elements
Group 3 ( K) has 37 elements
Group 4 ( CL) has 14 elements
Group 5 ( Other) has 30 elements
Group 6 ( LIG) has 30 elements
Group 7 ( K) has 37 elements
Group 8 ( CL) has 14 elements
Group 9 ( Ion) has 51 elements
Group 10 ( LIG) has 30 elements
Group 11 ( K) has 37 elements
Group 12 ( CL) has 14 elements
Group 13 (r_4-6_r_8-9_r_13-15_r_17-20_r_23-24_&_!O1P_O2P_P_O5'_C5'_C3'_C2'_C1'_O4'_O3'_H*) has 168 elements
Group 14 ( LIG_&_!H*) has 21 elements
Group 15 (r_4_r_8_r_13_r_17_&_!O1P_O2P_P_O5'_C5'_C4'_C3'_C2'_C1'_O4'_O3'_H*_r_4_r_8_r_13_r_17_&_H1_H21_H22) has 56 elements
Select a group: Calculating the average structure ...
Reading frame 77000 time 770000.000
Constructing covariance matrix (63x63) ...
Reading frame 77000 time 770000.000
Read 77637 frames
Trace of the covariance matrix: 4.52557 (nm^2)
Diagonalizing ...
Sum of the eigenvalues: 4.52557 (nm^2)
Writing eigenvalues to eigenval.xvg
Writing average structure & eigenvectors 1--63 to eigenvec.trr
Wrote the log to covar.log
GROMACS reminds you: "Heard a talk introducing a new language called Swift, from a guy named Wozniak, and it had nothing to do with Apple!" (Adam Cadien)
Choose a group for the least squares fit
Selected 13: 'r_4-6_r_8-9_r_13-15_r_17-20_r_23-24_&_!O1P_O2P_P_O5'_C5'_C3'_C2'_C1'_O4'_O3'_H*'
Choose a group for the covariance analysis
Selected 14: 'LIG_&_!H*'
2. Calculate projections on first five PCs
We will use eigenvectors eigenvec.trr as input files to GROMACS tool gmx anaeig to calculate projection of first 5 eigenvectors on trajectory. These projections will be written into proj.xvg file by default.
[2]:
%%bash
echo 13 14 | gmx anaeig -s inputs/input.tpr -f inputs/trajectory.xtc -n inputs/input.ndx -proj -first 1 -last 5
:-) GROMACS - gmx anaeig, 2025.2 (-:
Executable: /opt/gromacs-2025/bin/gmx
Data prefix: /opt/gromacs-2025
Working dir: /home/raj/workspace/gmx_clusterByFeatrues/tutorials/ligand-pca
Command line:
gmx anaeig -s inputs/input.tpr -f inputs/trajectory.xtc -n inputs/input.ndx -proj -first 1 -last 5
trr version: GMX_trn_file (single precision)
Read non mass weighted average/minimum structure with 21 atoms from eigenvec.trr
Read 63 eigenvectors (for 21 atoms)
Reading file inputs/input.tpr, VERSION 2016.5 (single precision)
Reading file inputs/input.tpr, VERSION 2016.5 (single precision)
Group 0 ( System) has 864 elements
Group 1 ( DNA) has 783 elements
Group 2 ( LIG) has 30 elements
Group 3 ( K) has 37 elements
Group 4 ( CL) has 14 elements
Group 5 ( Other) has 30 elements
Group 6 ( LIG) has 30 elements
Group 7 ( K) has 37 elements
Group 8 ( CL) has 14 elements
Group 9 ( Ion) has 51 elements
Group 10 ( LIG) has 30 elements
Group 11 ( K) has 37 elements
Group 12 ( CL) has 14 elements
Group 13 (r_4-6_r_8-9_r_13-15_r_17-20_r_23-24_&_!O1P_O2P_P_O5'_C5'_C3'_C2'_C1'_O4'_O3'_H*) has 168 elements
Group 14 ( LIG_&_!H*) has 21 elements
Group 15 (r_4_r_8_r_13_r_17_&_!O1P_O2P_P_O5'_C5'_C4'_C3'_C2'_C1'_O4'_O3'_H*_r_4_r_8_r_13_r_17_&_H1_H21_H22) has 56 elements
Select a group: Group 0 ( System) has 864 elements
Group 1 ( DNA) has 783 elements
Group 2 ( LIG) has 30 elements
Group 3 ( K) has 37 elements
Group 4 ( CL) has 14 elements
Group 5 ( Other) has 30 elements
Group 6 ( LIG) has 30 elements
Group 7 ( K) has 37 elements
Group 8 ( CL) has 14 elements
Group 9 ( Ion) has 51 elements
Group 10 ( LIG) has 30 elements
Group 11 ( K) has 37 elements
Group 12 ( CL) has 14 elements
Group 13 (r_4-6_r_8-9_r_13-15_r_17-20_r_23-24_&_!O1P_O2P_P_O5'_C5'_C3'_C2'_C1'_O4'_O3'_H*) has 168 elements
Group 14 ( LIG_&_!H*) has 21 elements
Group 15 (r_4_r_8_r_13_r_17_&_!O1P_O2P_P_O5'_C5'_C4'_C3'_C2'_C1'_O4'_O3'_H*_r_4_r_8_r_13_r_17_&_H1_H21_H22) has 56 elements
Select a group: 5 eigenvectors selected for output: 1 2 3 4 5
Reading frame 77000 time 770000.000
GROMACS reminds you: "If it's a good idea, go ahead and do it. It's much easier to apologize than it is to get permission." (Grace Hopper, developer of COBOL)
Note: the structure in inputs/input.tpr should be the same
as the one used for the fit in gmx covar
Select the index group that was used for the least squares fit in gmx covar
Selected 13: 'r_4-6_r_8-9_r_13-15_r_17-20_r_23-24_&_!O1P_O2P_P_O5'_C5'_C3'_C2'_C1'_O4'_O3'_H*'
Select an index group of 21 elements that corresponds to the eigenvectors
Selected 14: 'LIG_&_!H*'

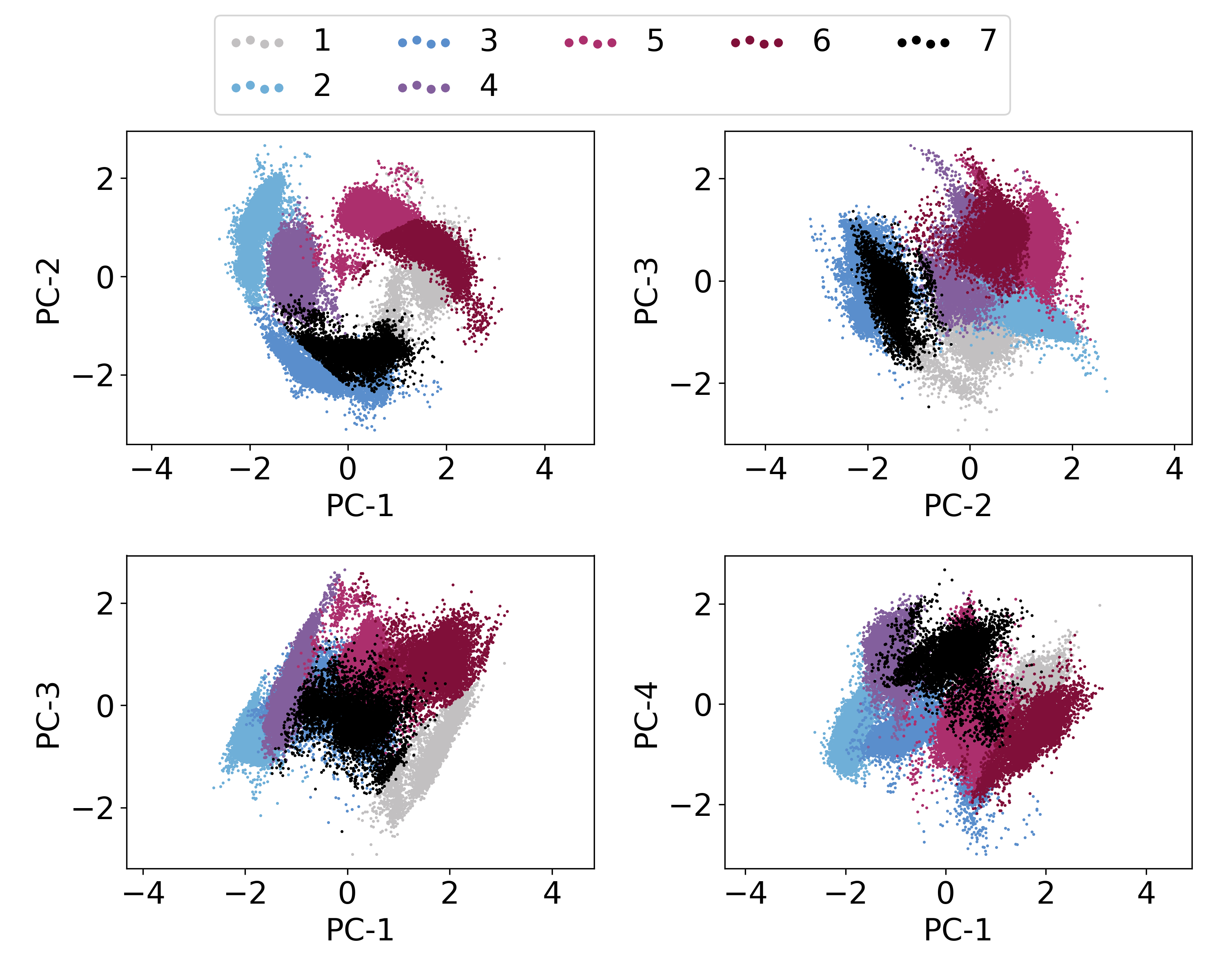

3. Clustering using first five PCs as features
Now, we will perform clustering using K-Means algorithm. One of the drawback of K-Means clustering is that the number of clusters should be known beforehand. To automate the decision about number of clusters, gmx_clusterByFeatures implements several cluster metrics. We will use option -cmetric ssr-sst to use the [Elbow
method](https://en.wikipedia.org/wiki/Elbow_method_(clustering).
Following command will perform the clustering of conformations using first 5 PCs projection. Explanation of options are as follows:
-method kmeans: Use K-Means clustering algorithm-ncluster 10: K-Means clustering will be performed for 1 upto 10 clusters times each time. Finally, based on-ssrchangeoption, final number of clusters will be automatically selected.-cmetric ssr-sst: Use Elbow method to decide final number of clusters.-nfeature 5: Take 5 feature fromfeat proj.xvginput file. Here it is projection of first 5 eigenvectors on the trajectory.-sort features: Sort the output clustered trajectory based on the distance in feature space from its central structure.-fit2central: Fit/Superimpose the conformation on cluster’s central structure in output clustered trajectory.-ssrchange 2: Threshold (percentage) of change in SSR/SST ratio in Elbow method to automatically decide the number of clusters.-cpdb clustered-trajs/central.pdb: Dump central conformation of each cluster as a separate pdb file.-fout clustered-trajs/cluster.xtc: Dump conformations of each cluster as the separate trajectory file.-plot pca_cluster.png: Plot the feature-space (here, it is first 5 PCs from PCA) coloured by the clusters.
index group order
First index group - Output group of atoms in the central structures and clustered trajectories
Second index group - Group of atoms to calculate RMSD between central conformations of clusters as RMSD matrix, which is dumped in the log file with
-goption. Here, it is Ligand without hydrogen atoms.Third index group - Used for Superimposition by least-square fitting. ONLY used in separate clustered trajectories to superimpose conformations on the central structure. Here, it is G-tetrads of the G4DNA that are highly rigid.
Note: This command could take a long time to execute!
This command could take a long time to execute because it is writing output trajectory file for each cluster sorted by distance in feature-space. Therefore, it needs to read input trajectory back-and-forth many time to extract the conformations in sorted manner. XTC format is fast for back-and-forth reading, and it still could take long time to dump the output trajectories.
Content of output ``-g cluster.log`` file
It contains the command summary, and for each input cluster-numbers, number of frames in each clusters. At the end it dumps the Cluster Metrics Summary, which is important for deciding final number of clusters.
[7]:
%%bash
# create a new folder to contain clustered trajectory and pdb files
mkdir clustered-trajs
echo 0 14 13 | gmx_clusterByFeatures cluster -s inputs/input.tpr -f inputs/trajectory.xtc -n inputs/input.ndx -feat proj.xvg \
-method kmeans -nfeature 5 -cmetric ssr-sst -ncluster 10 -fit2central -sort features -cpdb clustered-trajs/central.pdb \
-fout clustered-trajs/cluster.xtc -plot pca_cluster.png
:-) GROMACS - gmx_clusterByFeatures cluster, 2025.0-dev-20250210-6949615-local (-:
Executable: gmx_clusterByFeatures cluster
Data prefix: /project/external/gmx_installed
Working dir: /home/raj/workspace/gmx_clusterByFeatrues/tutorials/ligand-pca
Command line:
'gmx_clusterByFeatures cluster' -s inputs/input.tpr -f inputs/trajectory.xtc -n inputs/input.ndx -feat proj.xvg -method kmeans -nfeature 5 -cmetric ssr-sst -ncluster 10 -fit2central -sort features -cpdb clustered-trajs/central.pdb -fout clustered-trajs/cluster.xtc -plot pca_cluster.png
:-) gmx_clusterByFeatures cluster (-:
Author: Rajendra Kumar
Copyright (C) 2018-2019 Rajendra Kumar
gmx_clusterByFeatures is a free software: you can redistribute it and/or modify
it under the terms of the GNU General Public License as published by
the Free Software Foundation, either version 3 of the License, or
(at your option) any later version.
gmx_clusterByFeatures is distributed in the hope that it will be useful,
but WITHOUT ANY WARRANTY; without even the implied warranty of
MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
GNU General Public License for more details.
You should have received a copy of the GNU General Public License
along with gmx_clusterByFeatures. If not, see <http://www.gnu.org/licenses/>.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
"AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT
OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF
LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
Back Off! I just backed up cluster.log to ./#cluster.log.1#
Reading file inputs/input.tpr, VERSION 2016.5 (single precision)
Reading file inputs/input.tpr, VERSION 2016.5 (single precision)
Group 0 ( System) has 864 elements
Group 1 ( DNA) has 783 elements
Group 2 ( LIG) has 30 elements
Group 3 ( K) has 37 elements
Group 4 ( CL) has 14 elements
Group 5 ( Other) has 30 elements
Group 6 ( LIG) has 30 elements
Group 7 ( K) has 37 elements
Group 8 ( CL) has 14 elements
Group 9 ( Ion) has 51 elements
Group 10 ( LIG) has 30 elements
Group 11 ( K) has 37 elements
Group 12 ( CL) has 14 elements
Group 13 (r_4-6_r_8-9_r_13-15_r_17-20_r_23-24_&_!O1P_O2P_P_O5'_C5'_C3'_C2'_C1'_O4'_O3'_H*) has 168 elements
Group 14 ( LIG_&_!H*) has 21 elements
Group 15 (r_4_r_8_r_13_r_17_&_!O1P_O2P_P_O5'_C5'_C4'_C3'_C2'_C1'_O4'_O3'_H*_r_4_r_8_r_13_r_17_&_H1_H21_H22) has 56 elements
Select a group: Group 0 ( System) has 864 elements
Group 1 ( DNA) has 783 elements
Group 2 ( LIG) has 30 elements
Group 3 ( K) has 37 elements
Group 4 ( CL) has 14 elements
Group 5 ( Other) has 30 elements
Group 6 ( LIG) has 30 elements
Group 7 ( K) has 37 elements
Group 8 ( CL) has 14 elements
Group 9 ( Ion) has 51 elements
Group 10 ( LIG) has 30 elements
Group 11 ( K) has 37 elements
Group 12 ( CL) has 14 elements
Group 13 (r_4-6_r_8-9_r_13-15_r_17-20_r_23-24_&_!O1P_O2P_P_O5'_C5'_C3'_C2'_C1'_O4'_O3'_H*) has 168 elements
Group 14 ( LIG_&_!H*) has 21 elements
Group 15 (r_4_r_8_r_13_r_17_&_!O1P_O2P_P_O5'_C5'_C4'_C3'_C2'_C1'_O4'_O3'_H*_r_4_r_8_r_13_r_17_&_H1_H21_H22) has 56 elements
Select a group: Group 0 ( System) has 864 elements
Group 1 ( DNA) has 783 elements
Group 2 ( LIG) has 30 elements
Group 3 ( K) has 37 elements
Group 4 ( CL) has 14 elements
Group 5 ( Other) has 30 elements
Group 6 ( LIG) has 30 elements
Group 7 ( K) has 37 elements
Group 8 ( CL) has 14 elements
Group 9 ( Ion) has 51 elements
Group 10 ( LIG) has 30 elements
Group 11 ( K) has 37 elements
Group 12 ( CL) has 14 elements
Group 13 (r_4-6_r_8-9_r_13-15_r_17-20_r_23-24_&_!O1P_O2P_P_O5'_C5'_C3'_C2'_C1'_O4'_O3'_H*) has 168 elements
Group 14 ( LIG_&_!H*) has 21 elements
Group 15 (r_4_r_8_r_13_r_17_&_!O1P_O2P_P_O5'_C5'_C4'_C3'_C2'_C1'_O4'_O3'_H*_r_4_r_8_r_13_r_17_&_H1_H21_H22) has 56 elements
Reading frame 4 time 40.000
=======================
Cluster Log output
=======================
Command:
=======================
'gmx_clusterByFeatures cluster' -s inputs/input.tpr -f inputs/trajectory.xtc -n inputs/input.ndx -feat proj.xvg -method kmeans -nfeature 5 -cmetric ssr-sst -ncluster 10 -fit2central -sort features -cpdb clustered-trajs/central.pdb -fout clustered-trajs/cluster.xtc -plot pca_cluster.png
=======================
Choose a group for the output:
Selected 0: 'System'
Choose a group for clustering/RMSD calculation:
Selected 14: 'LIG_&_!H*'
Choose a group for fitting or superposition:
Selected 13: 'r_4-6_r_8-9_r_13-15_r_17-20_r_23-24_&_!O1P_O2P_P_O5'_C5'_C3'_C2'_C1'_O4'_O3'_H*'
Input Trajectory dt = 10 ps
###########################################
########## NUMBER OF CLUSTERS : 1 ########
###########################################
===========================
Cluster-ID TotalFrames
1 77637
===========================
###########################################
########## NUMBER OF CLUSTERS : 2 ########
###########################################
===========================
Cluster-ID TotalFrames
1 45430
2 32207
===========================
###########################################
########## NUMBER OF CLUSTERS : 3 ########
###########################################
===========================
Cluster-ID TotalFrames
1 31277
2 26396
3 19964
===========================
###########################################
########## NUMBER OF CLUSTERS : 4 ########
###########################################
===========================
Cluster-ID TotalFrames
1 27976
2 19493
3 15804
4 14364
===========================
###########################################
########## NUMBER OF CLUSTERS : 5 ########
###########################################
===========================
Cluster-ID TotalFrames
1 19076
2 15840
3 15812
4 14309
5 12600
===========================
###########################################
########## NUMBER OF CLUSTERS : 6 ########
###########################################
===========================
Cluster-ID TotalFrames
1 15849
2 15625
3 14289
4 12636
5 12436
6 6802
===========================
###########################################
########## NUMBER OF CLUSTERS : 7 ########
###########################################
===========================
Cluster-ID TotalFrames
1 15300
2 14284
3 12634
4 12045
5 8607
6 7989
7 6778
===========================
###########################################
########## NUMBER OF CLUSTERS : 8 ########
###########################################
===========================
Cluster-ID TotalFrames
1 14972
2 14273
3 11994
4 11527
5 8624
6 7965
7 6460
8 1822
===========================
###########################################
########## NUMBER OF CLUSTERS : 9 ########
###########################################
===========================
Cluster-ID TotalFrames
1 15253
2 14261
3 12611
4 7429
5 7126
6 6915
7 6636
8 5418
9 1988
===========================
###########################################
########## NUMBER OF CLUSTERS : 10 ########
###########################################
===========================
Cluster-ID TotalFrames
1 14972
2 11475
3 10723
4 8440
5 7999
6 6960
7 6250
8 5413
9 3592
10 1813
===========================
===========================================================================================================
Cluster Metrics Summary
-----------------------------------------------------------------------------------------------------------
Clusters SSR/SST D(SSR/SST) (Psuedo)F-stat. Silhouette-score Davies-bouldin-score
2 36.58 36.578 44774.656 0.378 1.214
3 60.11 23.530 58487.125 0.453 0.911
4 69.62 9.510 59295.070 0.475 0.870
5 78.31 8.693 70071.805 0.504 0.789
6 82.85 4.538 74995.758 0.519 0.744
7 85.66 2.813 77291.609 0.531 0.783
8 87.02 1.364 74378.094 0.546 0.793
9 88.38 1.357 73812.672 0.533 0.760
10 89.45 1.070 73136.641 0.511 0.823
===========================================================================================================
#####################################
Final number of cluster selected: 7
#####################################
Calculating central structure for cluster-7 ...
Reading frame 6 time 237500.000 <string>:127: MatplotlibDeprecationWarning: The non_interactive_bk attribute was deprecated in Matplotlib 3.9 and will be removed in 3.11. Use ``matplotlib.backends.backend_registry.list_builtin(matplotlib.backends.BackendFilter.NON_INTERACTIVE)`` instead.
Back Off! I just backed up clid.xvg to ./#clid.xvg.1#
Reading frame 77000 time 242190.000
GROMACS reminds you: "XML is not a language in the sense of a programming language any more than sketches on a napkin are a language." (Charles Simonyi)
===========================================
Cluster-ID Central Frame Total Frames
1 19604 15300
2 40230 14284
3 50481 12634
4 57523 12045
5 16039 8607
6 6092 7989
7 23750 6778
===========================================
Extracting coordinates of the central structure...
Calculating RMSD between central structures...
=====================================
Central structurs - RMSD matrix
=====================================
c1 c2 c3 c4 c5 c6 c7
0.000 0.823 0.777 0.729 0.530 0.428 0.567
0.823 0.000 0.764 0.493 0.595 0.877 0.809
0.777 0.764 0.000 0.583 0.793 0.805 0.444
0.729 0.493 0.583 0.000 0.500 0.684 0.564
0.530 0.595 0.793 0.500 0.000 0.366 0.759
0.428 0.877 0.805 0.684 0.366 0.000 0.741
0.567 0.809 0.444 0.564 0.759 0.741 0.000
=====================================
Writing central structure to pdb-files...
Writing trajectory for each cluster...
Analysis
Now, we will perform following analysis on obtained clusters:
Comparison of RMSDs within and between the clusters: It will highlight the quality of clustering by measuring the difference in the clusters
Plotting PC vs PC cluster-wise. In fact, this is already plotted in the above obtained
pca_cluster.pngfile. However, we will focus on first three PCs to demonstrate the distribution of conformation in PC space and also location of central structure in this feature-space.Cluster-ID with time: We will plot cluster-id as a function of time to analyze, how conformation is changing between clusters as a function of time.
At first, we will load Python modules and define some functions as follows:
[8]:
import re
import sys
import numpy as np
import matplotlib as mpl
import matplotlib.pyplot as plt
[9]:
def read_xvg(filename):
''' Read any XVG file and return the data as 2D array where data is row-wise with respect to time.
'''
fin = open(filename, 'r')
data = []
for line in fin:
line = line.rstrip().lstrip()
if not line:
continue
if re.search('^#|^@', line) is not None:
continue
temp = re.split('\s+', line)
data.append(list(map(float, temp)))
data = np.asarray(data)
return data.T
1a. Calculation of RMSDs within and between the clusters
At first, we need to calculate RMSDs of ligand within and between the clusters using gmx rms command as follows.
Note: The G4DNA structure is already superimposed when separated cluster-trajectory were written in previous step, therefore, we are not performing fitting in RMSD calculations below,
Note: Remove %%capture --no-stdout and %%capture --no-stderr to populate all the output generated from gmx rms commands.
[14]:
%%capture --no-stdout
%%capture --no-stderr
%%script bash
# make directory for rmsd files
mkdir clustered-rmsd
for i in `seq 1 7`
do
for j in `seq 1 7`
do
echo 2 | gmx rms -f clustered-trajs/cluster_c${j}.xtc -s clustered-trajs/central_c${i}.pdb -o clustered-rmsd/c${i}_c${j} -nopbc -fit none
done
done

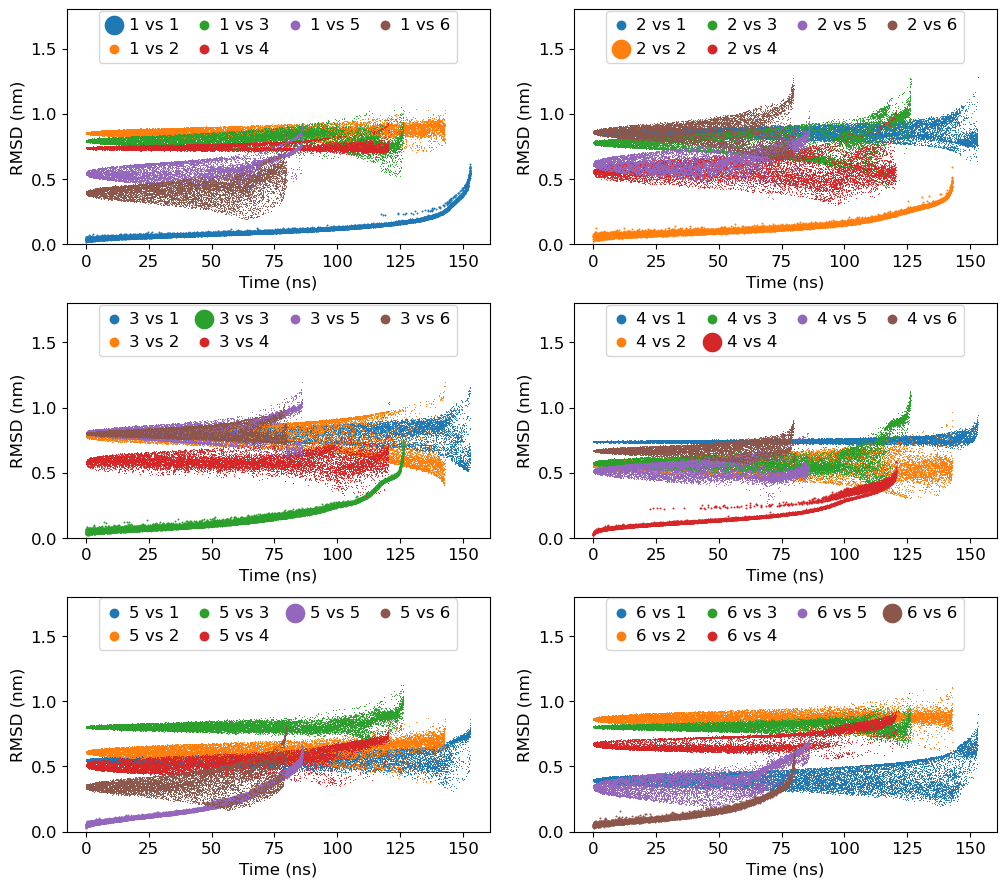

1b. Comparison of ligand RMSDs within and between the clusters
We will use Python to plot all the obtained RMSDs above.
[17]:
mpl.rcParams['font.size']=12
fig = plt.figure(figsize=(12,12))
fig.subplots_adjust(top=0.98, bottom=0.05, hspace=0.25)
for i in range(1,7):
ax = fig.add_subplot(4, 2, i)
for j in range(1,7):
filename = 'clustered-rmsd/c{0}_c{1}.xvg'.format(i, j)
label = "{0} vs {1}".format(i, j)
data = read_xvg(filename) # read file
if i==j:
ax.scatter(data[0]/1000, data[1], label=label, lw=0, s=2)
else:
ax.scatter(data[0]/1000, data[1], label=label, lw=0, s=0.5)
ax.set_ylim(0, 1.8)
ax.set_xlabel('Time (ns)')
ax.set_ylabel('RMSD (nm)')
plt.legend(loc='upper center', ncol=4, markerscale=10, borderaxespad=0.1, columnspacing=1, handlelength=1, handletextpad=0.4)
plt.savefig('rmsd-comparison.png', dpi=300)
plt.show()
2. Plotting PC vs PC cluster-wise
It will be done in two steps:
An input file will be prepared containing information about feature searial and their labels.
gmx_clusterByFeatures featuresplotwill be used to generate the plot.
[22]:
%%bash
# First step - preparation of input file
echo "1,2,PC-1,PC-2" > features-label.txt
echo "2,3,PC-2,PC-3" >> features-label.txt
echo "1,3,PC-1,PC-3" >> features-label.txt
echo "1,4,PC-1,PC-4" >> features-label.txt
cat features-label.txt
# Second step - plotting
gmx_clusterByFeatures featuresplot -i features-label.txt -feat proj.xvg -clid clid.xvg -o ligand-pca-PCs-vs-PCs.png
1,2,PC-1,PC-2
2,3,PC-2,PC-3
1,3,PC-1,PC-3
1,4,PC-1,PC-4

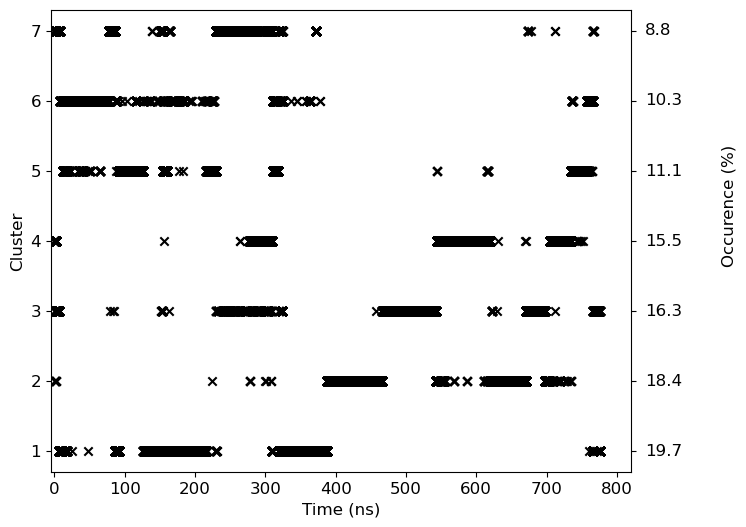

3. Cluster-ID with time
We will use clid.xvg obtained from the cluster subcommand to plot both cluster-id and also highlight the occurance of the given cluster.
[21]:
# Occurance has been calculated manually from the data obtained in cluster.log file
occur=[ 19.7, 18.4, 16.3, 15.5, 11.1, 10.3, 8.8]
mpl.rcParams['font.size']=12
data=read_xvg('clid.xvg')
fig = plt.figure(figsize=(8,6))
fig.subplots_adjust(right=0.85)
ax = fig.add_subplot(111)
ax.scatter(data[0]/1000, data[1], marker='x', color='k')
ax.tick_params(axis='y', right=True)
ax.set_ylabel('Cluster')
ax.set_xlabel('Time (ns)')
ax.set_xlim(-5, 820)
for i in range(7):
ax.text(840, i+1, '{0:3.1f}'.format(occur[i]), verticalalignment='center')
ax.text(960, 4.5, 'Occurence (%)', verticalalignment='center', rotation='vertical', horizontalalignment='center')
plt.savefig('clid.png', dpi=300)
plt.show()
